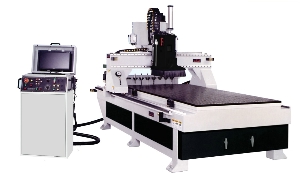

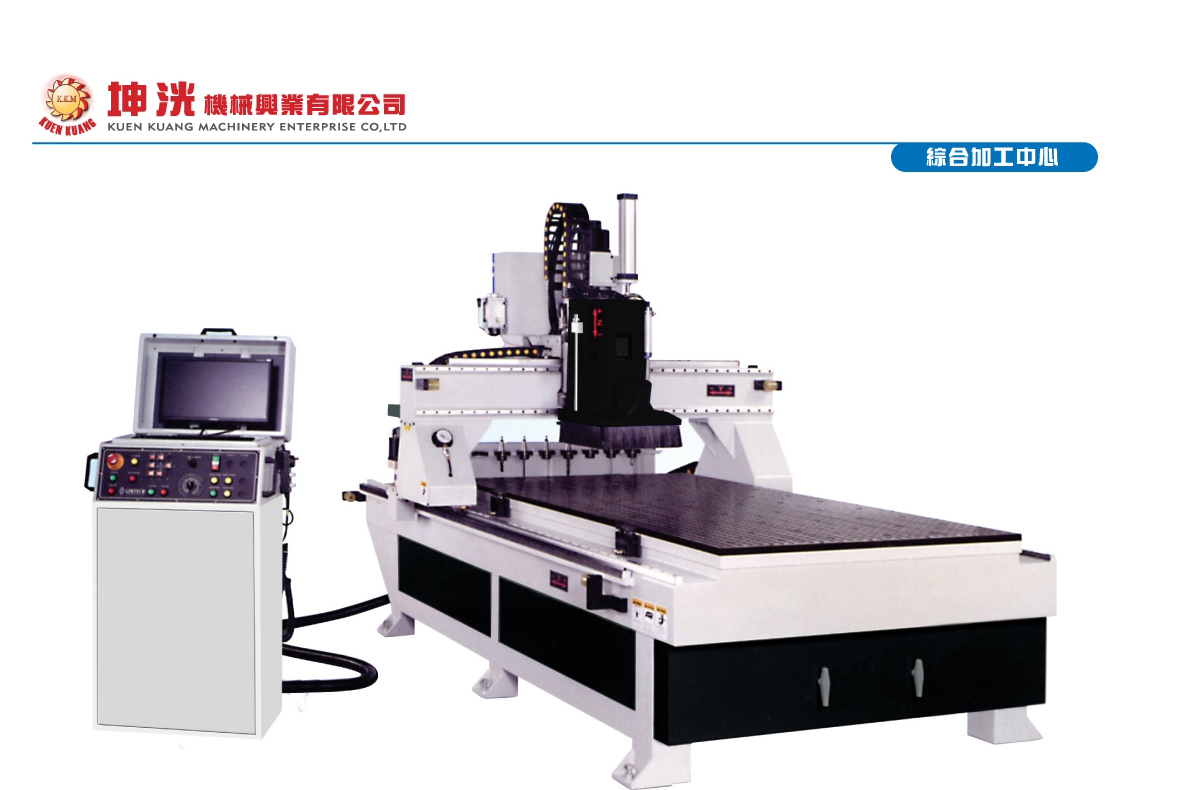

CNC working center Working table: 2450 x 1300mm ATC type routing spindle 10HP* one sets Machine base Make use of the latest technology of advanced 3-D CAD and structural analysis system for optimum design. Well-ribbed, single-piece machine base, single-piece rugged steel column is built in machine gantry. Solid welded machine frame is tempered, stress relieved and annealed for free of deformation. Moving system AC drivers and servo motors from Mitsubishi, Japan. High-precision grounded ball rail system top load capacities in main load directions High-precision recirculating ball screws in main axis directions Working travel X=2500mm Y=1350mm Z=200mm Max. positioning speed X=52m/min Y=52m/min Z=15m/min Working table Dimension of working table : 2450x1300mm Solid continuous machining table high-pressure laminated material table top Retractable stops: 8 pcs Working unit Italy HDS routing spindle 10HP Clockwise rotation Tool interface ISO 30 Air cooling Oil-air lubrication Max. rotation speed: 24000 rpm Push button for manual tool clamp/relese Rotary tray-type tool magazine Capacity of tool magazine:8 pcs Integrated with working unit for fast tool change Suction device Roots blower 10HP Automatic central lubrication system in X-,Y- and Z-direction Control system Architecture on industrial PC basis. Windows based pull-down menu. Display the relative illustration. Error diagnostics with explanatory messages. Context sensitive help. DNC function provides long program direct execution sent from host computer through
